How To Create No-Go Zones On Your Map

If you want to prevent the mower from entering certain areas on the map, such as a pool or a flower bed, you can create a No-Go Zone.

Posted 18 August 2026
Roborock College - Mapping Functions

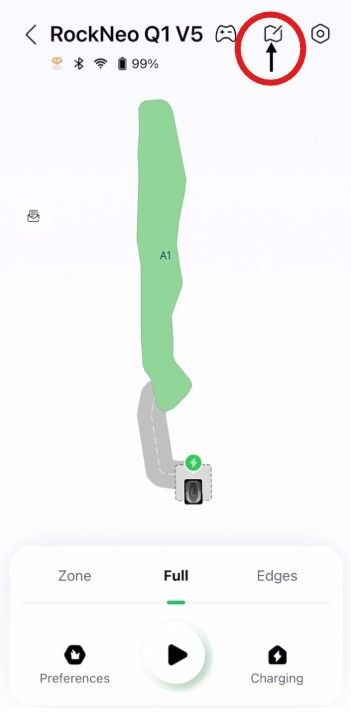

  1. Firstly, enter the detailed mowing page, on the Mowing page, tap 'Manage the Map' icon on the top right side.

Create a No-Go Zone1.jpg

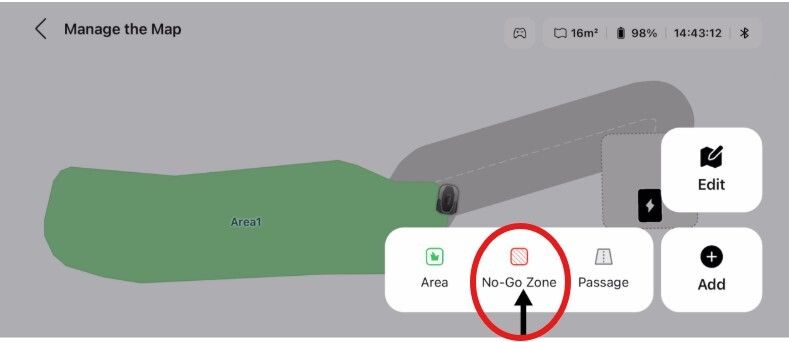

  1. Tap Add, then select No-Go Zone.

Create a No-Go Zone2.jpg

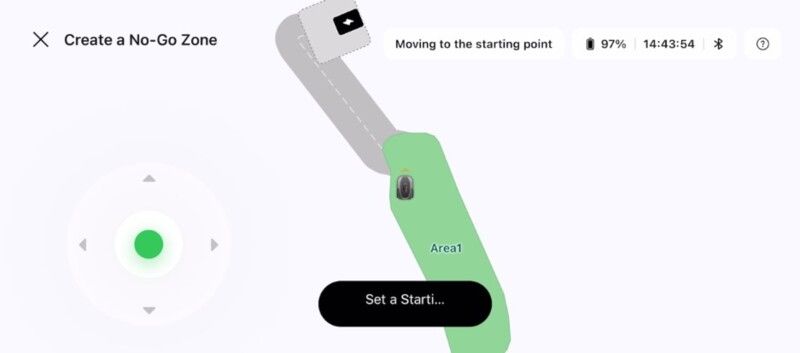

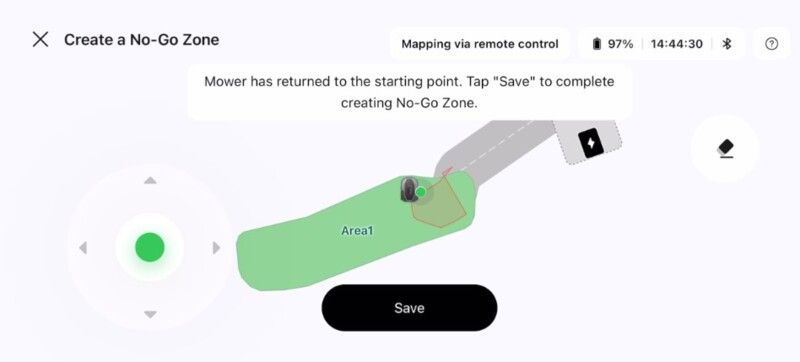

  1. Manually control and guide the mower around the area you want to restrict and connect the starting point and end point. Then tap Save.

Create a No-Go Zone3.jpg

Create a No-Go Zone4.jpg

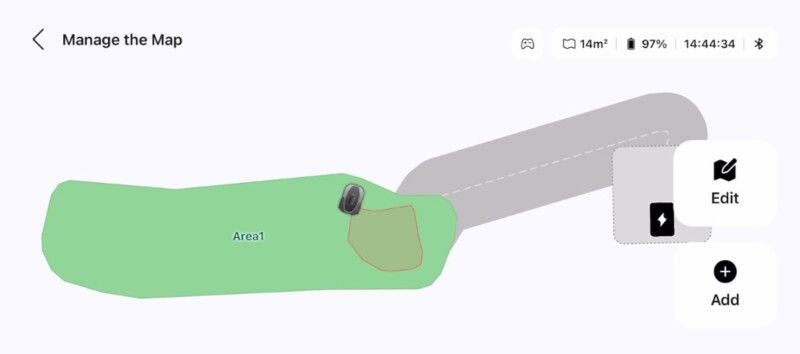

  1. After saving, the restricted area will appear in red on the map, indicating that the No-Go Zone has been successfully created.

Create a No-Go Zone5.jpg
