How To Manually Set A Channel

Passages can be created automatically or manually. If automatic creation fails or does not meet your needs, you can create manually by following the steps as below:

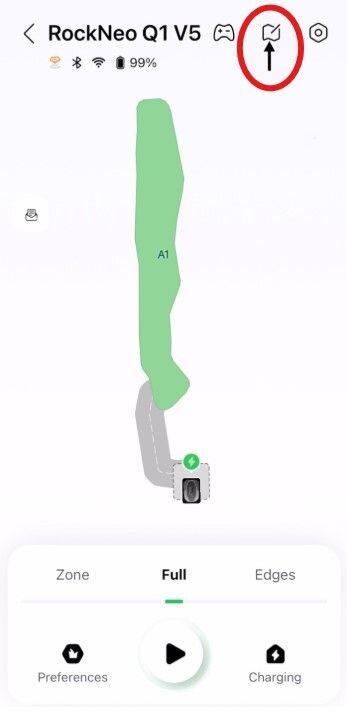

1. Firstly, enter the detailed mowing page, on the Mowing page, tap 'Manage the Map' icon on the top right side. See the red circle in the image below.

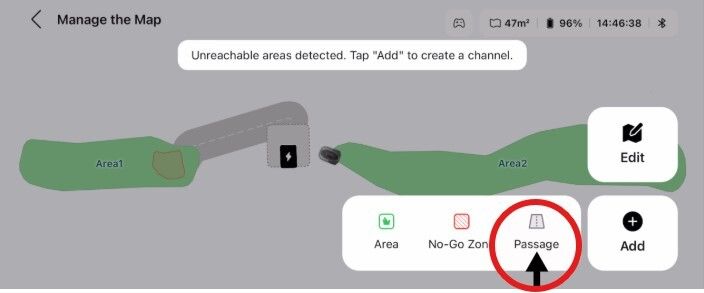

2. Tap Add, then select Passage.

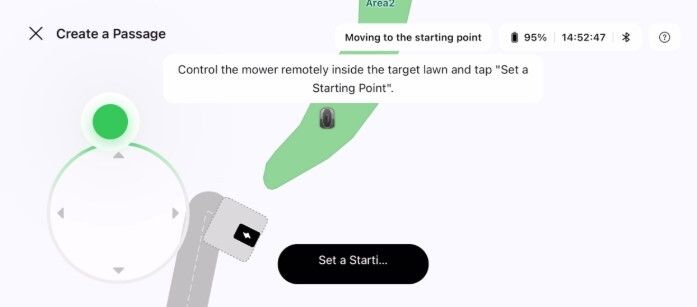

3. In this case, for example, we want to manually create a passage between Area1 and Area2. We need to control the mower using the joystick, let the mower start from a spot within Area 1, then tap 'Set a starting point'.

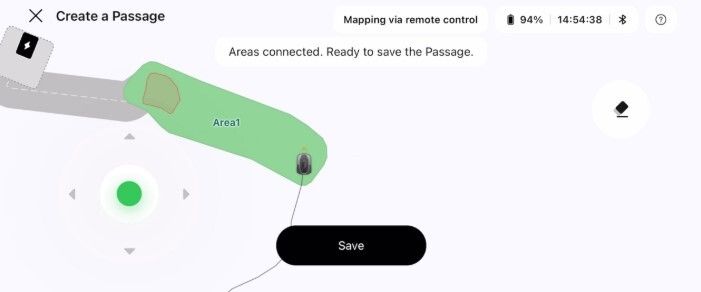

4. Control the mower, choose an appropriate path, drive the mower to Area 2, once the mower is within Area2, the 'Save' button will appear. Click 'Save' and create the passage.

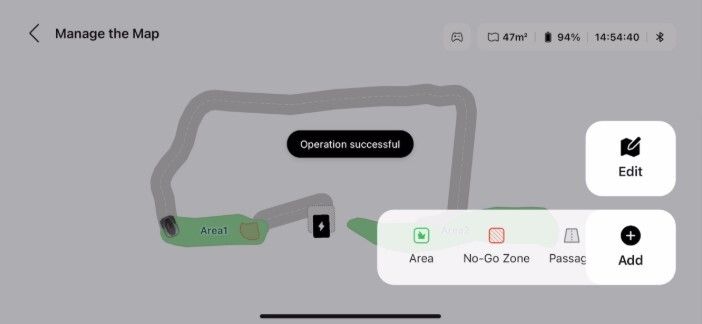

5. ​An 'Operation successful' notification would show once passage has been created successfully

Note: The starting and ending points should not be on the boundary of any areas, as this may cause failure of passage creation. Always ensure that you start and finish inside of the boundary areas.
